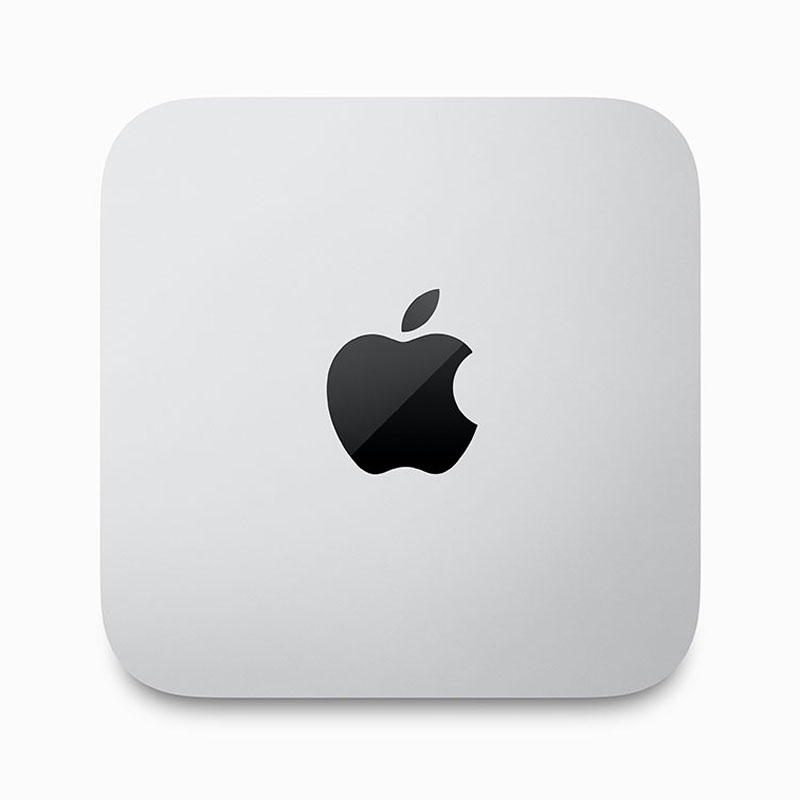

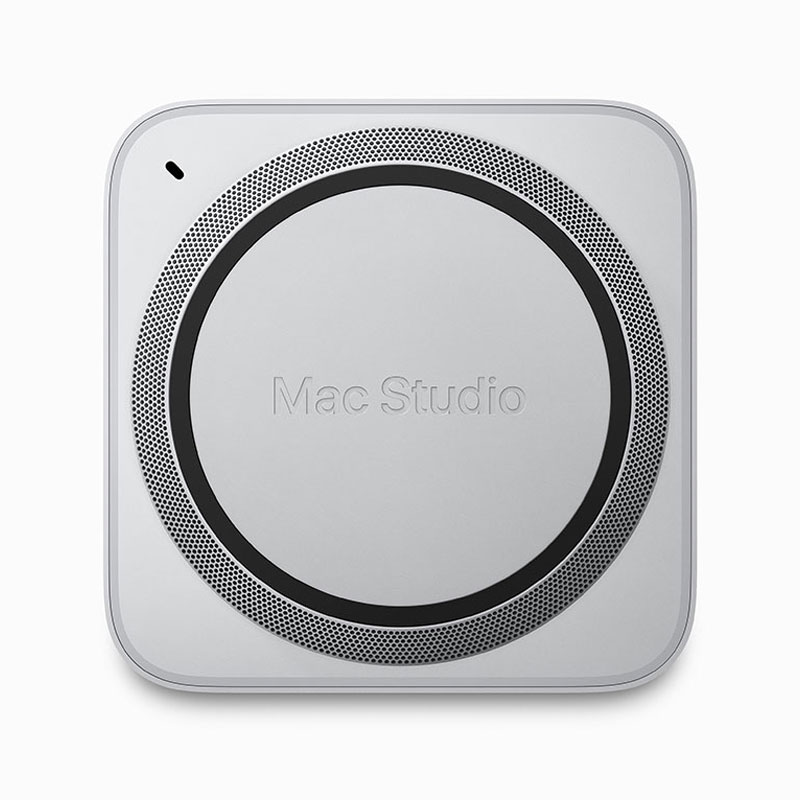

Mac Studio M5 Max Chip 36/512GB (18C CPU 32C GPU)

Apple

Mac Studio M5 Max

Apple M5 Max Chip

36GB unified memory
Upgraded to:
48GB, 64GB, or 128GB (M5 Max with 18‑core CPU and 40‑core GPU)

18-core CPU with 6 super cores and 12 performance cores
32-core GPU
Neural Accelerators
Hardware-accelerated ray tracing
16-core Neural Engine
460GB/s memory bandwidth
Media Engine

Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode

Upgraded to:
M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine (614GB/s memory bandwidth)

512GB SSD
Upgraded to:
1TB, 2TB, 4TB, or 8TB

M5 Max

Supports up to five external displays over any combination of Thunderbolt and HDMI ports:

Five displays: Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz, plus a fifth display with up to 5K at 60Hz over HDMI Up to three displays: Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a third display with up to 5K at 60Hz over HDMI
Supports up to four external displays over a single Thunderbolt port
Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Supports variable refresh rate (VRR), HDR, and multichannel audio

Built-in speaker
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 480W

Wireless

Apple N1 wireless networking chip
Wi‑Fi 7 (802.11be)3
Bluetooth 6
Thread networking technology

Ethernet:
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

macOS

Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)

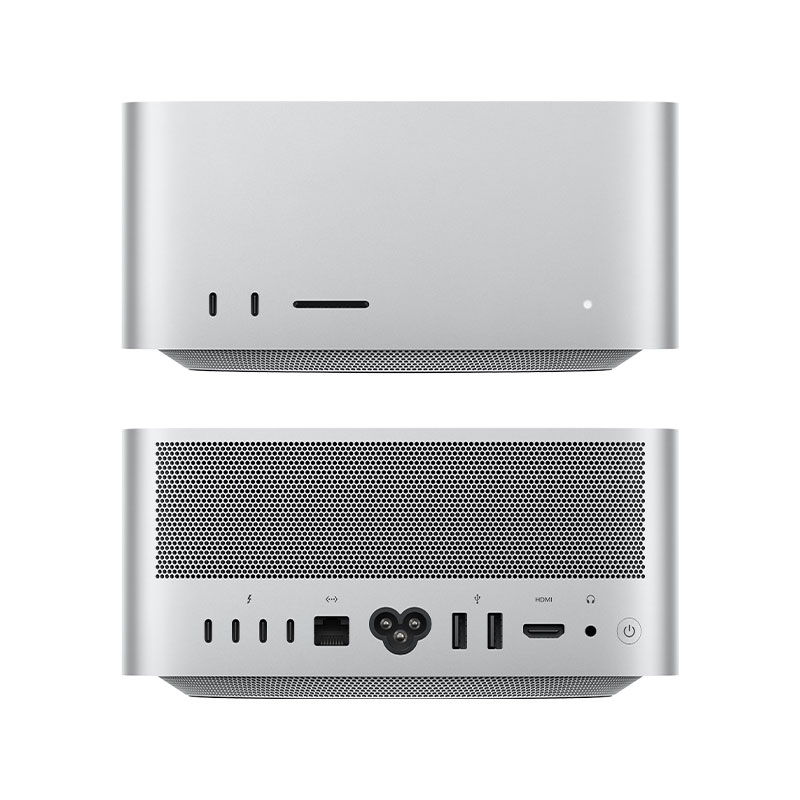

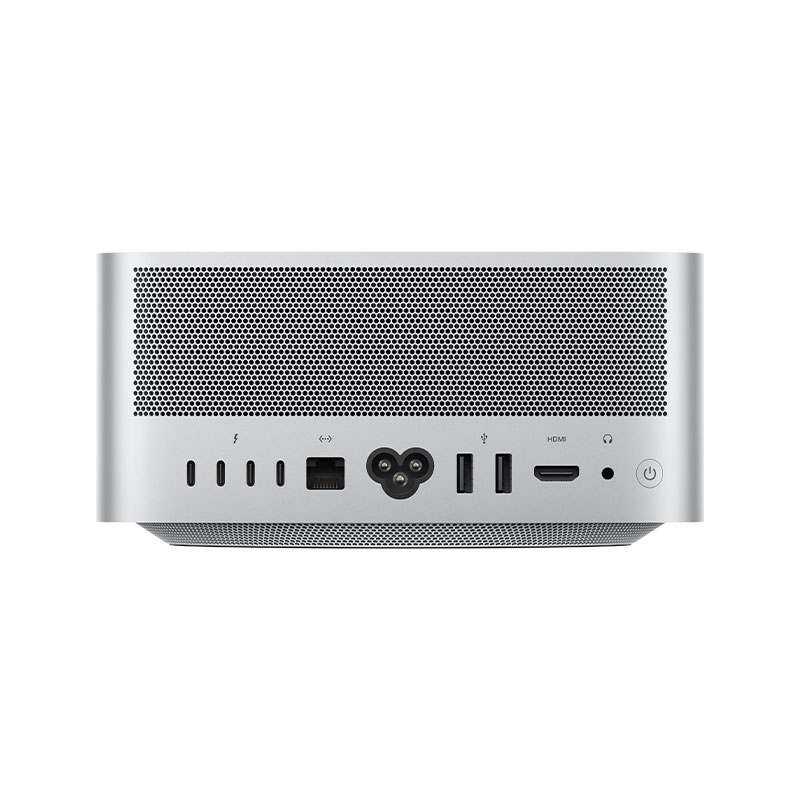

Four Thunderbolt 5 (USB‑C) ports with support for:
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)
USB 3 (up to 10Gb/s)
DisplayPort 2.1
Genlock2
Two USB 3 (USB‑A) ports (up to 5Gb/s)
HDMI 2.1 port
10Gb Ethernet
3.5 mm headphone jack

On front (M5 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)

Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)

6.0 pounds (2.7 kg)

Silver

1 Year
