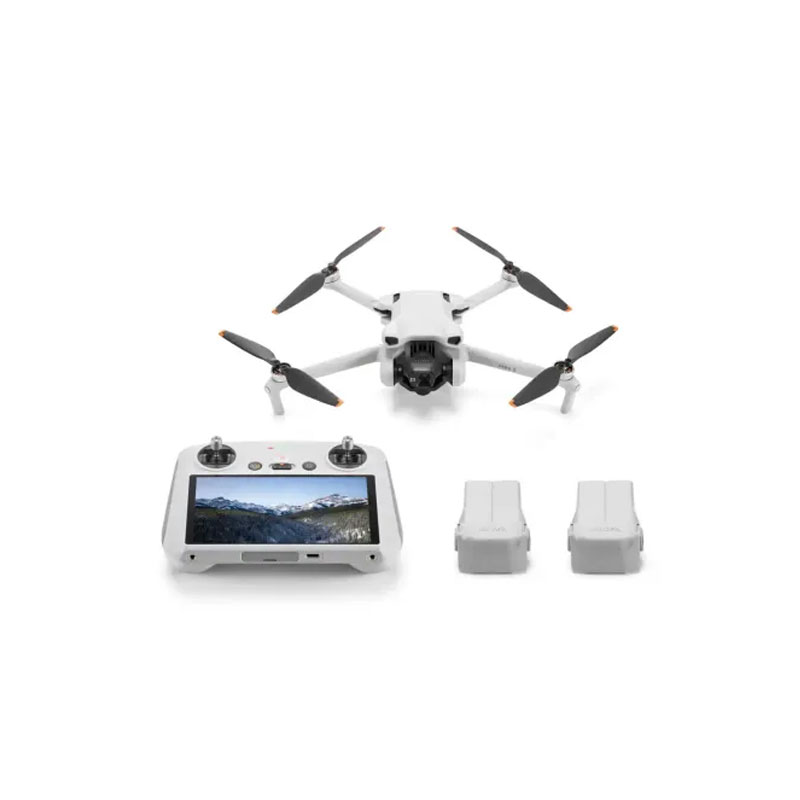

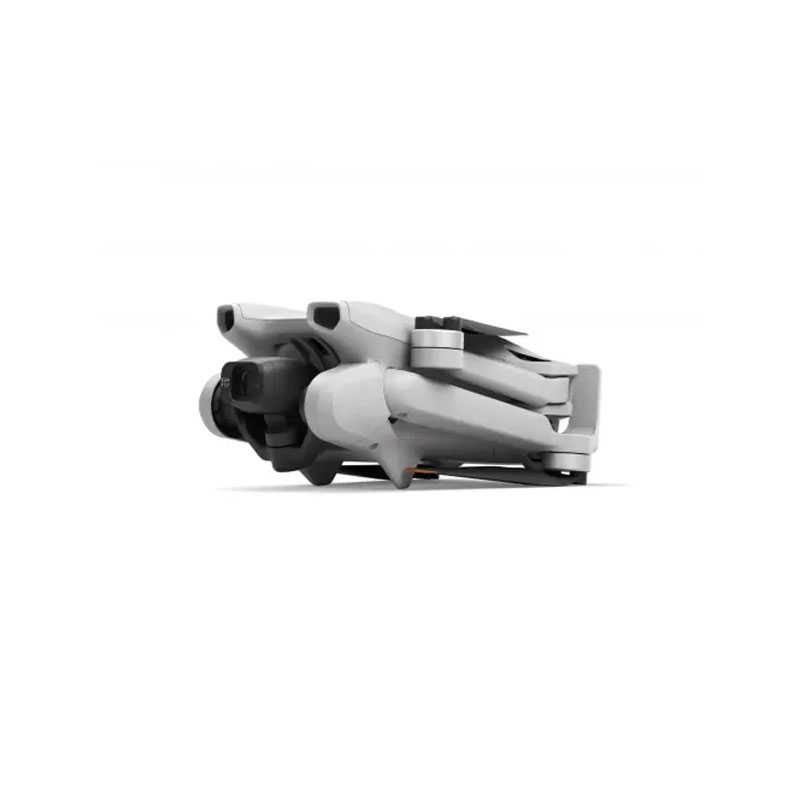

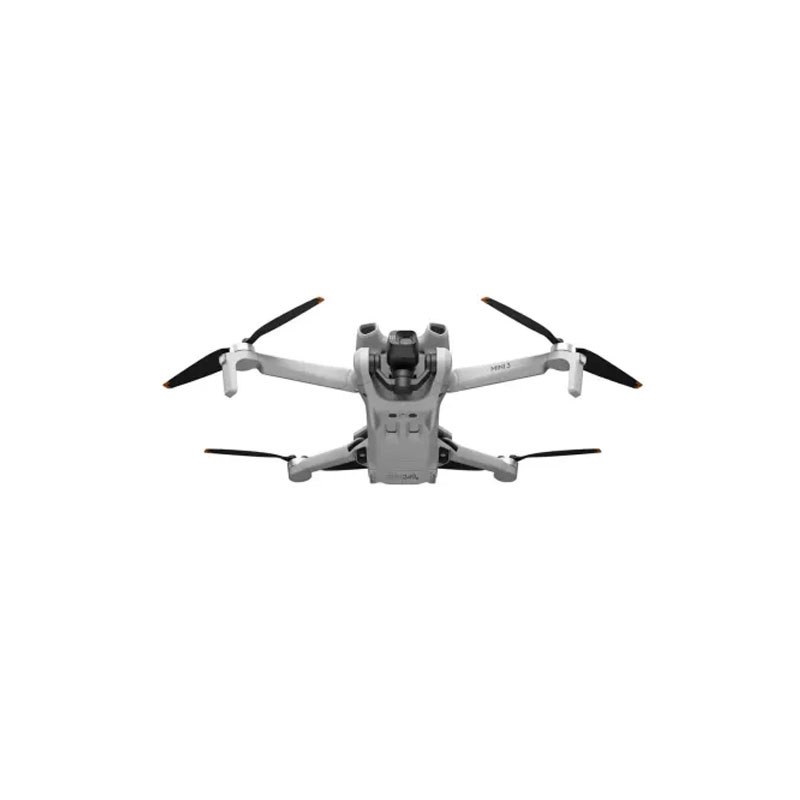

DJI Mini 3 Fly More Combo Drone with DJI RC Remote Controller

Weight (Battery & Propellers Included)

Takeoff weight of 248 g

Diagonal Size (Propellers Excluded)

247 mm

Max Ascent Speed

5 m/s

Max Descent Speed

3.5 m/s

Max Speed

16 m/s

Max Tilt Angle

40°

Max Angular Speed

130°/s in S (Sport) mode

Max Service Ceiling Above Sea Level

4,000 meters (13,123 feet)

Max Wind Speed Resistance

10.7 m/s (Level 5)

Max Flight Time

38 minutes (with Intelligent Flight Battery)
51 minutes (with Intelligent Flight Battery Plus)

Operating Temperature Range

–10 °C to 40 °C (14 °F to 104 °F)

Satellite Positioning Systems

GPS + Galileo + BeiDou

Hover Accuracy Range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system)

Stabilization

3-axis mechanical gimbal (tilt, roll, and pan)

Controllable Range

Tilt: -90° to 60°
Roll: -90° or 0°

Controllable Angular Speed

100°/s

Angular Vibration Range

±0.01°

Velocity Range

16 m/s

Altitude Range

4,000 meters

Operating Range

10 km

FOV

Horizontal 106°, Vertical 90°
Horizontal 58°, Vertical 73°
Forward/Backward 104.8°, Left/Right 87.6°
82.1°

Measuring Frequency

2.400-2.4835 GHz
5.725-5.850 GHz [4]

Operating Environment

Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement)
Adequate lighting (lux >15, e.g., normal exposure environment with indoor fluorescent lamp)

Sensor

1/1.3-inch CMOS
Effective Pixels: 48 MP

Lens

FOV: 82.1°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus Range: 1 m to ∞

ISO Range

Video: 100-6400 (Auto), 100-6400 (Manual)
Photo: 100-6400 (Auto), 100-6400 (Manual)

Electronic Shutter Speed

Electronic Shutter: 2-1/8000 s

Image Size

4:3: 8064×6048 (48 MP), 4032×3024 (12 MP)
16:9: 4032×2268 (12 MP)

PIV Image Size

4032 × 3024 pixels (12 MP) for still photos

Still Photography Modes

Single Shot
Interval:
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 2/3/5/7/10/15/20/30/60 s
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 2/3 EV Bias
Panorama: Sphere, 180°, Wide-angle, and Vertical

Video Recording Modes

Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid

Max Video Bitrate

Aircraft + Remote Controller: 18 Mbps

Supported File Systems

FAT32 (≤32 GB)
exFAT (>32 GB)


JPEG/DNG (RAW)

Video

MP4/MOV (H.264/H.265)

Supported SD Cards

UHS-I Speed Class 3 or above is required.
A list of recommended microSD cards can be found below

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Operating Frequency

2.400 – 2.4835 GHz
5.725 – 5.850 GHz

Max Transmission Distance

DJI O3

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Battery

6 hrs (without charging any mobile device)
4 hrs (when charging a mobile device)

Transmitter Power (EIRP)

2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Operating Current/Voltage

Operating Voltage: 3.6 V (internal battery)
Operating Current/Power Consumption: Approx. 1.5 A @ 3.6 V during normal use (varies slightly with screen brightness and transmission power)

Capacity

2453 mAh

Voltage

7.38 V

Battery Type

Li-ion

Energy

18.1 Wh

Net Weight

Approx. 80.5 g

Charging Temperature Range

5° to 40° C (41° to 104° F)

Max Charging Power

30 W

Voltage

Supports multiple input voltages: 5 V / 9 V / 12 V at 3 A

Rated Power

2.400-2.4835 GHz band: < 26 dBm (FCC), < 20 dBm (CE / SRRC / MIC)
5.725-5.850 GHz band: < 26 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE)

Weight

248 g (including battery, propellers, and a microSD card)

Dimensions

Folded: 145×90×62 mm
Unfolded: 171×245×62 mm
Unfolded (with propellers): 251×362×70 mm

Screen Size

5.5-inch FHD (full high definition)

Screen Refresh Rate

720p at 30 fps

Communication Frequency

1.4MHz/3MHz/10MHz/20MHz/40MHz

Transmitter Power (EIRP)

Wi-Fi:
2.400-2.4835 GHz: ＜19 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: ＜20 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth: 2.400-2.4835 GHz: ＜8 dBm

Transmission Range

8 km

Supported Video and Audio Playback Formats

Video Format: MP4
Video Codec: H.264 / H.265 (MPEG-4 AVC / HEVC)
Audio Format: AAC

Supported microSD Cards

UHS-I Speed Class 3 or above is required.
A list of recommended microSD cards can be found below.

Mobile App

DJI Fly

Live View Quality

1080p/30fps

Latency

Aircraft + Remote Controller: Approx. 120 ms

Warranty

1 Year
